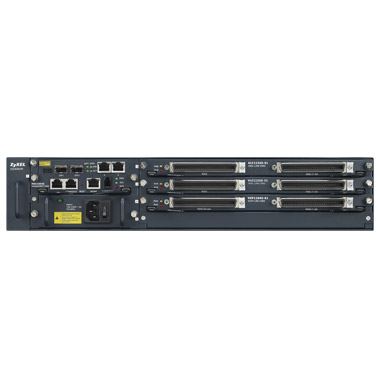

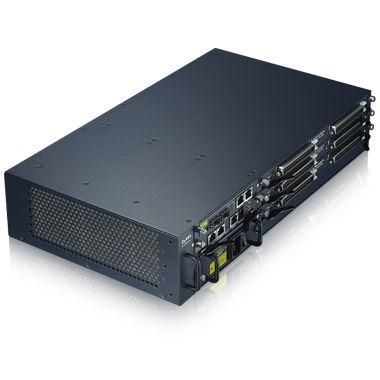

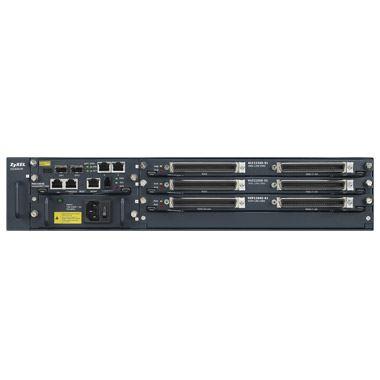

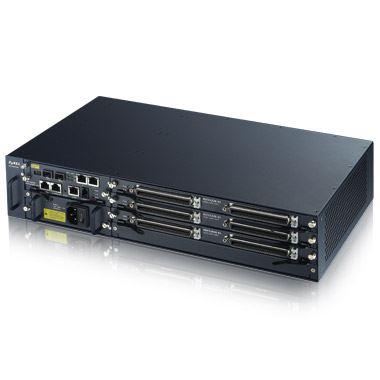

IES4005 Series

2U Temperature-Hardened 5-slot Chassis Remote MSAN

Dual-uplink Remote MSAN Enabling Next-Generation Services for SPs, Enterprises and Building Complexes

The IES4005 Series is ZyXEL’s next-generation MDU (multi-dwelling unit) supporting active or passive fiber uplinks and up to 128 ADSL or 128 VDSL subscribers, or 256 VoIP subscribers with full IPv6 functionality that quickly enables service providers to deploy triple-play services. The ZyXEL IES4005 Series can be deployed in basements or in street cabinets to realize fiber-to-the-building or fiber-to-the-curb applications and triple-play services. Service providers can freely choose uplink types to adapt to the existing infrastructures. The ZyXEL IES4005 Series also supports bundled services for PSTN network migration to VoIP infrastructure.

mehr Details im Überblick

GE and GPON dual uplinks for flexible deployments

The ZyXEL IES4005 Series offers various uplink modules to serve from active Gigabit Ethernet to all fiber GPON structures. It can be connected to Point-to-point Active Gigabit Ethernet or Point-to-Multiple Point GPON access networks simply by switching different line card modules, which extends the broadband infrastructure to locations where fiber has yet to reach.

Copper-pair line cards for various “Last Mile” constructions

Equipped with copper-pair (ADSL2+, VDSL2, VoIP) subscriber line cards, the ZyXEL IES4005 Series allows operators to easily construct the last miles of broadband networks based upon the available transmission media to deliver services to the subscribers.

SIP and H.248 for smooth Voice over IP migration

The IES4005 Series has SIP and H.248 enabled voice over IP line cards, with which analog voice signals coming from subscriber lines can be digitalized and transmitted to the SIP or H.248 voice core. The capability enables operators to turn traditional voice exchange into VoIP core without any impact on the subscriber side. It also makes the migration pace to the entire VoIP infrastructure controllable.

Comprehensive, future-proof advanced features

The IES4005 Series inherits ZyXEL’s field-proven QoS and Security features to provide IPTV, VoIP and high-speed Internet services with a user-friendly configuration interface. The ZyXEL IES4005 Series supports IGMP snooping to prevent unnecessary forwarding of multicast traffic to all subscribers and thus optimizes bandwidth utilization for multicast applications such as broadcast video. It also supports the multicast VLAN feature that distributes the source to all the VLANs requesting the video stream. With a built-in splitter over POTS, the ZyXEL IES4005 Series allows the operators to provide Triple Play services over the same copper wire.

AC/DC power module to facilitate field installations

The ZyXEL IES4005 Series is a temperature-hardened remote system with a modular power supply that can be powered by either AC or DC sources. The operator staff can easily power the mini MSAN and put it in service according to the power facility status of the installation site. Its compact 2U design fits standard racks in remote sites and provides deployment flexibility for service providers to adapt to the existing network infrastructures.

Integrated ANSI/ETSI (600 ohm/900 ohm) POTS splitters

The ADSL and VDSL line card of The ZyXEL IES4005 Series are both integrated with splitters supporting both 600 ohm and 900 ohm. It not only saves space for remote sites or sidewalk cabinets, but also simplifies deployments of broadband services as far as the voice service provided by the Telco. Service Providers can take advantages of the ZyXEL IES4005 Series to offer VoIP services along with broadband through the infrastructure to small areas or buildings complexes.

Hot-swappable modulation mechanism for easy maintenance

The compact chassis of ZyXEL IES4005 Series has been designed to fit standard racks. It comes with 32-port ADSL2, 32-port VDSL2, 64-port VoIP line cards and GPON/GbE uplink management cards; all line cards and management cards are swappable so replacements can be easily done without powering down and therefore services are not interrupted.

Technische Daten

System Specifications

DSL Compliant

  • ADSL:
    - Support dual stack (IPv4 and IPv6)
    - Auto or fixed operation as either one of the following: ADSL2, ADSL2+, G.dmt, T1.413, G.lite
    - OAM loopback: both CO to CPE and CPE to CO
    - Frequency allocation band plan 998 and 997
    - 8 PVC per port
    - G.992.1, G.992.3, G.992.5
    - Latency path function in G.992.3 and G.992.5
    - Annex L and Annex M in G.992.3 and G.992.5
    - Loop diagnostic in G.992.3 and G.992.5
    - Power management mode by TR-202
    - Power management L0 and L2 mode. Parameters support: L0Time, L2Time,L2ATPR, L2ATPRT in G.992.3 and G.992.5
    - Seamless Rate Adaptation (SRA: Fix rate, Startup, Runtime) on-line configuration in G.992.3 and G.992.5
    - Reach extension ADSL (Annex L, RE-ADSL2)
    - Loop Diagnostic Mode (LDM, DELT)
    - Single End Loop Test (SELT)
    - Double upstream (Annex M)

  • VDSL:
    - Support dual stack (IPv4 and IPv6)
    - IPv6
    - VDSL2 profiles 8a, 8b, 8c, 8d, 12a, 12b and 17a
    - 16 K MAC addresses
    - 256 static MAC address filtering
    - Port security—limited number of MAC addresses per port
    - QoS support with IEEE 802.1P, 8 priority queues
    - Port-based and tag-based (IEEE 802.1Q) VLAN for privacy
    - IGMP proxy with snooping report
    - MVR consolidates same video stream requests to one
    - Configurable maximum nominal PSD mask
    - Customer PSD
    - RFI notch
    - Single latency in PTM mode
    - Loop Diagnostic Mode (LDM, DELT)
    - Single End Loop Test (SELT)
    - Seamless rate adaptation
    - Power management mode under fallback operation: fixed, priority to ower, priority to rate
    - Impulse noise protection


  • 512 IGMP groups

  • IGMP v3 any source multicast

  • IGMP group fast leave

  • IGMP message count control

  • MLD v2 any source multicast

  • IP multicast forwarding

  • Multicast VLAN (4 VLANs)

  • IGMP multicast channel limiting by count

  • IGMP multicast channel limiting by bandwidth usage

  • Multicast membership reports

  • Discard unknown multicast traffic

  • IGMP privilege profile

  • Broadcast/Multicast/Destination lookup fail storm control and configurable the limit number


  • VLAN transparent (802.1D; except for VLAN stacking TLS mode in a port/PVC)

  • IEEE 802.1Q VLAN tagging

  • VLAN trunk

  • VLAN translation (8 rules per port/PVC)

  • VLAN aggregation (4 rules per port/PVC)

  • IEEE 802.1ad VLAN stacking (Outer TPID configurable, selective QinQ; VLAN stacking TLS mode can not coexist with VLAN transparent in a port/PVC)

  • Limited MAC per DSL port

  • At least 1024 VLAN ID

  • Able to accept untagged frame from CPE

  • IEEE 802.1p priority que; at least 8 per uplink

  • Protocol-based VLAN

  • Port isolation

  • Broadcast storm control


  • DHCP spoofing with static IP filtering

  • Anti-MAC spoofing & ARP inspection (both can be enabled at the same time)

  • Upstream ACL mechanism: up to L4 packet classification based on IP source/destination address, protocol ID, UDP/TCP source/ destination port number and action definition

  • Static MAC address filtering by source/ destination

  • ARP broadcast filtering

  • DHCP broadcast filtering

  • NetBios filtering

  • IGMP filtering

  • BPDU filtering

  • L2 frame filtering, such as based on source MAC address, port etc.

  • PPPoE filtering

  • Layer 3 filtering based on IP header: source addresses, destination addresses, protocol ID, UDP/TCP port number

  • L2 frame filtering based on OUI

  • IPv6 packet classification

  • L2 filtering based on Ether type, source/ destination MAC address

  • Static MAC address forwarding/port lock

  • Anti MAC/IP address spoofing (DHCP snooping)

  • Limitation of number of dynamic learned MAC address on per subscriber port

  • Ethernet MAC filtering

Traffic Management

  • IEEE 802.3ad (link aggregation; LACP, GE uplink only)

  • IEEE 802.1d (Spanning tree)

  • IEEE 802.1w (Rapid spanning tree protocol)

  • PPPoE


  • DHCP (Snooping, relay & option 82)

  • LAN to LAN (Transprent LAN service; TLS)

  • IEEE 802.1p priority que
    - Configurable based Strict Priority Queuing (SPQ) or Weighted Round Robin (WRR)
    - DSCP code to 802.1p priority mapping

  • PVC default priority

  • OAM F5 loopback

  • Performance counters

  • Performance statistics (15 m)

  • DHCPv6 L2 relay agent

  • Support dual stack (IPv4 and IPv6)

  • MTU size up to 1600

  • Rate limiting

  • Upstream broadcast storm control


  • ITU-T H.248 v2 or RFC3261 SIP v2

  • Codec: G.711 (μ-law and A-law), G.726, G.729a/b, G.723.1

  • RTP (RFC1889)

  • RTCP (RFC1890)

  • RTP payload for DTMF digits (RFC2833)

  • Echo cancellation and auto gain control (G.165, G.168)

  • Voice Activity Detection (VAD)

  • Comfort Noise Generation (CNG)

  • Caller ID generation

  • Metallic Loop Testing for subscriber lines (MLT)

  • Configurable jitter buffer

  • Certified POTS phone with individual country code signaling

  • Certified Fax machine with T.30, T.38

  • Certified analog dial-up modem

  • Certified pay phone with battery (polarity) reversal, 12 KHz or 16 KHz charging signal

  • Certified POS terminal

  • Dial tone, second dial tone, ringing tone (ringback tone), busy tone, off-hook, warning tone Supplementary services

  • Emergency call local route

  • Do not disturb

  • Selective/anonymous call rejection

  • Call waiting and call hold

  • Call transfer (blind and attended transfer)

  • Call return and call back on busy

  • Off hook warning tone

  • Warning tone

  • Calling Line Identification Presentation (CLIP)

  • Calling Line Identification Restriction (CLIR)

  • Abbreviated dialing (speed dial)

  • Hotline (H.248)

  • Local dial (SIP only)

Network Management

  • DDMI readout for each uplink port (SFP dependent)

  • FTP for firmware upgrade, via MSC or via console

  • Dual image for smooth FW upgrade

  • Text-base configuration through console port and telnet (CLI)

  • Daylight saving

  • Configurable TPID

  • ZyXEL private MIB

  • RFC1213 MIB II Management Information Base for Network Management of TCP/IPbased internets

  • RFC5650 VDSL2 line MIB

Hardware Specifications


  • Four slots for hot-swappable line cards

  • One slot for hot-swappable management & uplink card

  • One slot for DC or AC power module

  • One slot for hot-swappable FAN module

  • 2G backplane switching capacity per line card slot

  • 2U in height

  • Rack-mountable for 19-inch and 21-inch rack

  • Front access (all interface, including all line cards, power and FAN modules)

  • REN: 15

  • Grounding terminal

Management Switch Cards—MSC1002G

  • Two 1G SFP open slots

  • DDM readout

  • 1G switching capacity to each line card slot

  • Independent LED to indicate the following status:
    - System status (SYS)
    - Power status (PWR)
    - Alarm status (ALM)
    - Individual link status (LINK)
    - Individual traffic status (ACT)

  • Hot-swappable

ADSL Line Card—ALC1132G-51

  • Thirty-two ADSL+POTS subscriber ports via one champ-64 connector

  • Thirty-two POTS splitter input ports via one champ-64 connector

  • Annex A

  • Built-in POTS splitter that supports both 600 and 900 ohm

  • Independent LED to indicate the following status:
    - Power status (PWR)
    - Alarm status (ALM)

  • Hot-swappable

VDSL Line Card—VLC1132G-51

  • G.993.2, G.994.1, G.997.1

  • Thirty-two VDSL+POTS subscriber ports via one champ-64 connector

  • Thirty-two POTS splitter input ports via one champ-64 connector

  • Annex A

  • Built-in POTS splitter that supports both 600 and 900 ohm

  • Independent LED to indicate the following status:
    - Power status (PWR)
    - Alarm status (ALM)

  • Hot-swappable

VoIP Line Card—VOP1164G-61

  • Sixty-four voice subscriber ports via two champ-64 connectors

  • Independent LED to indicate the following status
    - Power status (PWR)
    - Alarm status (ALM)

  • Hot-swappable

  • Loop current:
    - 25 mA MAX
    - ≥20 mA at 800 ohm loop resistance


  • One GPON WAN port with SC/APC connector

  • Class B+ optics

  • Complies with ITU-T G.984.1, G.984.2, G.984.3,G.984.4 and G.984.5 standards

  • One SFP Electrical Footprint complies MSA

  • Single fiber BiDi SC/APC receptacle

  • Ethernet IEEE 802.1q/p VLAN and priority

  • IEEE 802.3x flow control

Physical Specifications


  • Item dimensions (WxDxH): 440 x 270 x 88 mm (17.32" x 10.63" x 3.46")

  • Item weight: 5.124 kg (11.32 lb.)

  • Packing dimensions (WxDxH): 530 x 372 x 186 mm (20.86" x 14.64" x 7.32")

  • Packing weight: 6.28 kg (13.88 lb.)

Management Switch Card—MSC1002G

  • Item dimensions (WxDxH): 130 x 223 x 42 mm (5.12" x 8.78" x 1.65")

  • Item weight: 0.515 kg (1.14 lb.)

  • Packing dimensions (WxDxH): 185 x 329 x 78 mm (7.28" x 12.95" x 3.07")

  • Packing weight: 0.741 kg (1.64 lb.)

ADSL Line Card—ALC1132G-51

  • Item dimensions (WxDxH): 260 x 228 x 16 mm (10.23" x 8.97" x 0.63")

  • Item weight: 0.701 kg (1.55 lb.)

  • Packing dimensions (WxDxH): 375 x 295 x 53 mm (14.76" x 11.61" x 2.09")

  • Packing weight: 0.968 kg (2.14 lb.)

VDSL Line Card—VLC1132G-51

  • Item dimensions (WxDxH): 260 x 228 x 16 mm (10.23" x 8.97" x 0.63")

  • Item weight: 0.765 kg (1.67 lb.)

  • Packing dimensions (WxDxH): 375 x 295 x 53 mm (14.76" x 11.61" x 2.09")

  • Packing weight: 1.022 kg (2.26 lb.)

VoIP Line Card—VOP1164G-61

  • Item dimensions (WxDxH): 260 x 228 x 16 mm (10.23" x 8.97" x 0.63")

  • Item weight: 0.938 kg (1.67 lb.)

  • Packing dimensions (WxDxH): 375 x 295 x 53 mm (14.76" x 11.61" x 2.09")

  • Packing weight: 1.202 kg (2.26 lb.)


  • Item dimensions (WxDxH): 14 x 75 x 13 mm (0.55" x 0.24" x 0.04")

  • Item weight: 29.9 g (0.06 lb.)

  • Packing dimensions (WxDxH): 49 x 115 x 24 mm (0.16" x 0.37" x 0.07")

  • Packing weight: 39.4 g (0.08 lb.)

Environmental Specifications

  • Operating environment:
    - Temperature: -40°C to 65°C (-40°F to 149°F)
    - Humidity: 10 to 95% (Non-condensing)

  • Storage environment:
    - Temperature: -40°C to 70°C (-40°F to 158°F)
    - Humidity: 10 to 95% (Non-condensing)

  • Full load power consumption:
    - MSC1002G: 37 W
    - ALC1132G-51: 33.5 W
    - VLC1132G-51: 39.2 W
    - VOP1164G-61: 91.7 W
    - IES4005M-FAN: 19 W


  • RoHS & WEEE compliant

  • 2011/65/EU (RoHS 2) Restriction of Hazardous substances Directive

  • 2012/19/EU (WEEE 2) Waste electrical and electronic equipment Directive

  • 94/62/EC (PPW) Packaging and packaging waste Directive

  • 1907/2006 (REACH) Registration, evaluation, authorization and restriction of chemicals Regulation

  • ZyXEL ZA 3023—Environmental hazardous substances controlled standardization procedure requirement

  • ETSI 300-019

  • ITU-T K.20


  • EN60950-1

  • CSA60950-1

  • UL60950-1

  • IEC60950-1


  • FCC Rules Part 15 Subpart B Class A

  • CENELEC EN55022 Class A

  • EN55024 Class A

  • ETSI 300 386

    • IES4005M

      Main chassis, 4 line card slots

VDSL Line Card

    • VLC1132G-51

      32-port VDSL2 Annex A line card with built-in ETSI POTS splitter

ADSL Line Card

    • ALC1132G-51

      32-port ADSL Annex A line card with built-in ETSI POTS splitter

VoIP Line Card

    • VOP1164G-61

      64-port VoIP line card, H.248 or SIP

Management Switch Cards

    • MSC1002G

      Management card with 2 GbE SFP


    • PMG3000-D20A (Option)

      One GPON WAN port with SC/APC connector

Diese Internetseite verwendet Cookies, um die Funktionalität und den Inhalt zu optimieren. Durch die Nutzung unserer Website wird der Verwendung von Cookies zugestimmt. Weitere Informationen zu Cookies und der Verwendung Ihrer Daten erhalten Sie in unserer Datenschutzerklärung.
