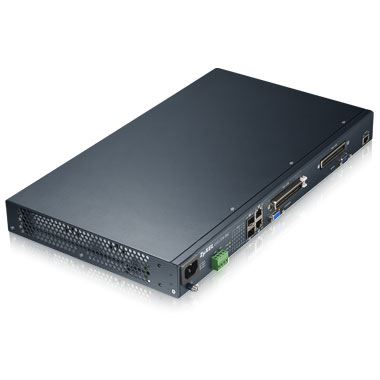

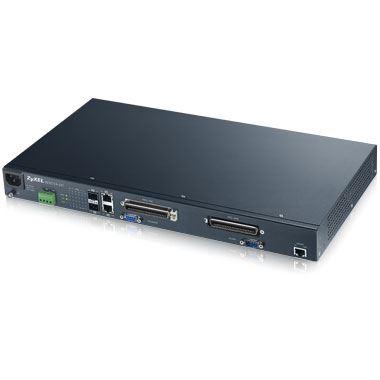

24-port Temperature-Hardened VDSL2 Box DSLAM

Compact and Full-featured VDSL2 Technology

Compliant with ITU-T G.993.2, G994.1, G.997.1, G.998.4 G.inp, and G.993.5 vectoring

The VES1724-55C conforms to G.993.2, G994.1 G.997.1, G.998.4 G.inp, and G.993.5 vectoring to ensure the interoperability with standard-compliant VDSL CPE.

Ultra high-speed transmission with 17a profile support

The VES1724-55C supports 17a profile with 100 Mbps in downstream traffics. With two Gigabit combo ports to connect upper layer aggregation networks, the VES1724-55C can support low-oncentration interconnection from the subscriber ports to the network interface ports.

mehr Details im Überblick

Triple Play ready

The VES1724-55C supports IGMP snooping to prevent unnecessary forwarding of multicast traffic to all subscribers and thus optimizes bandwidth utilization for multicast applications such as broadcast video.The VES1724-55C also supports the multicast VLAN feature that distributes the source to all the VLANs requesting the video stream. With a built-in splitter over POTS, the VES1724-55C allows the operators to provide Triple Play services over the same copper wire.

Complete QoS for service differentiation

The VES1724-55C supports not only 802.1X port-based access control for subscriber authentication, but also defines a limited number of MAC addresses that can access the network from a particular port. With rate limiting on the subscriber ports allowing services to take advantage of 64 Kbps increments, service providers will be in a better position to offer tiered services.

Technische Daten

System Specifications

  • 16K MAC addresses

  • 256 static MAC address filtering

  • Port security

  • Broadcast/Multicast/Destination lookup fail storm control

  • Spanning tree protocol (IEEE 802.1D)

  • QoS (IEEE 802.1P, 8 priority queues)

  • Port-based and tag-based (IEEE 802.1Q) VLAN

  • GVRP for automatic VLAN membership registration

  • Link aggregation (IEEE 802.3ad)

  • IGMP snooping / Proxy

  • MVR

  • RMON

  • SNMP

  • MIB II, RFC1493, 2674 and 1757 MIB, and private MIB

  • Web management

  • FTP for firmware upgrade

  • CLI through Console port and telnet

  • IPv6

  • VDSL2 bonding

  • ADSL2+ fallback & bonding

  • G.INP (G.998.4)

  • Vectoring (G.993.5)

Hardware Specifications

  • 1U

  • 19” rack mountable

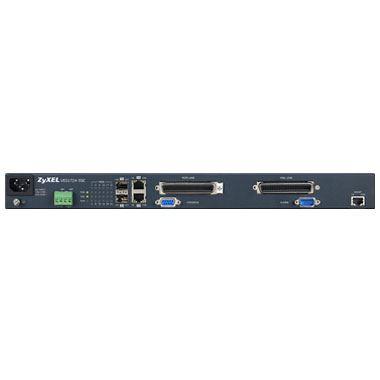

  • Front access:
    - One Telco 50 for 24 VDSL ports
    - One Telco 50 for 24 POST ports
    - 2-slot 100/1000 Mbps Ethernet uplink/downlink
    - 2-slot Gigabit fiber uplink/downlink (Combo)
    - Built-in POTS splitter supports 600 ohm ETSI & 900 ohm ANSI

  • AC and DC dual power (Power redundancy)
    - AC input: 100 VAC to 264 VAC, 60 Hz ±3 Hz
    - DC input: -36 VDC to -72 VDC

  • Power consumption: 63 watts

Physical Specifications

  • Item dimensions (WxDxH): 440 x 250 x 44.35 mm (17.32" x 9.84" x 1.75")

  • Item weight: 4,700g (10.36 lb.)

  • Packing dimensions (WxDxH): 550 x 395 x 175 mm (21.65" x 15.55" x 6.89")

  • Packing weight: 5,300 g (11.68 lb.)

Environmental Specifications

  • Operating Environment
    - Temperature: -40°C to 65°C (-40°F to 149°F)
    - Humidity: 10% to 95% (Non-condensing)

  • Storage Environment
    - Temperature: -40°C to 70°C (-40°F to 158°F)
    - Humidity: 5% to 95% (Non-condensing)


  • RoHS

  • K.20

  • ETSI300-019

  • Safety
    - EN60950-1
    - CSA60950-1
    - UL60950-1
    - IEC60950-1

  • EMC
    - FCC Part 15 Class A
    - EN55022 Class A
    - ETSI300-386
